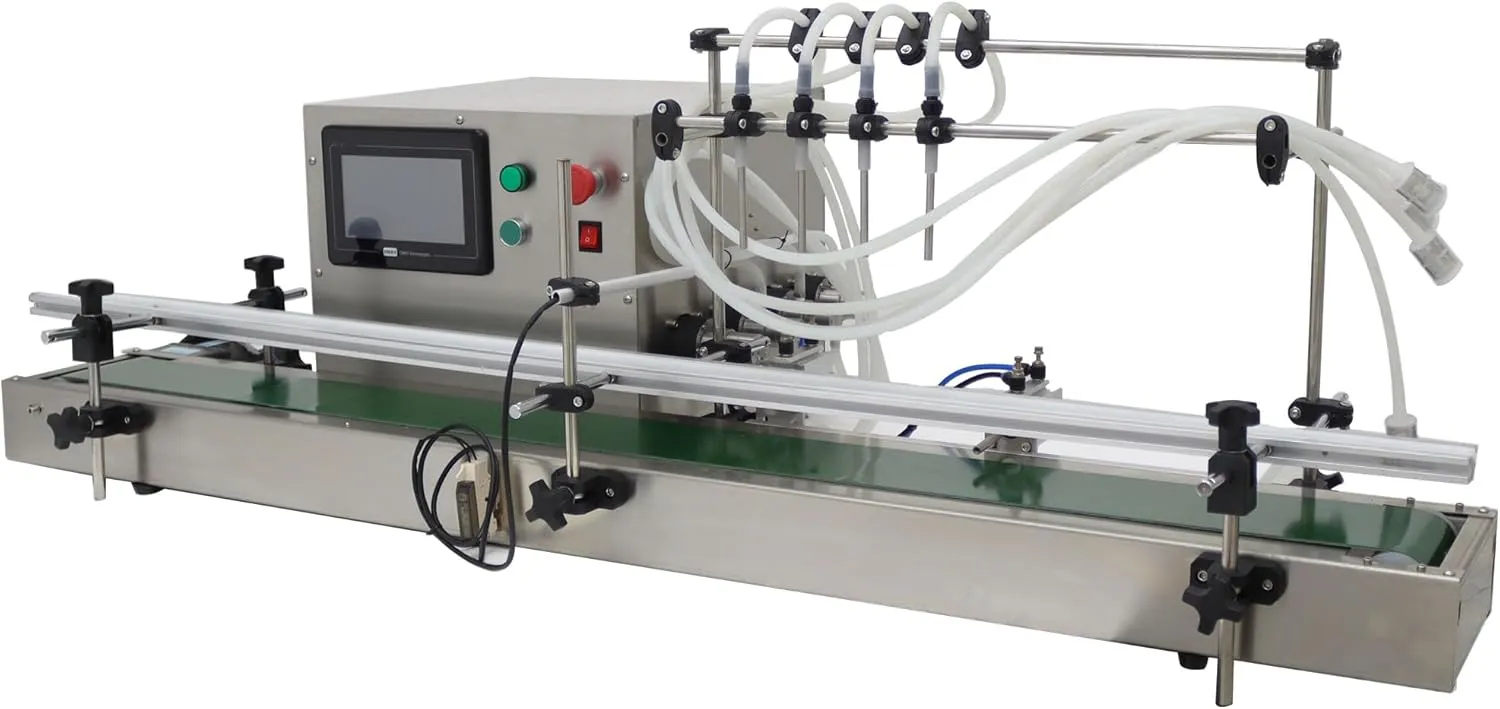

- 【Widely Used】The Automatic liquid filling machine is made of stainless steel， only needs to place the bottle on the conveyor belt, and when the bottle moves forward, the cursor will automatically fill after detecting the bottle. It can be used for both single machine production and online production.Suitable for filling in industries such as cosmetics, beverages, food, etc.
- 【4 Heads 8mm Nozzles】with four 8mm Nozzles synchronous canning, anti dripping and anti drawing. the filling volume is 4*（10-1000ml).
- 【with 56.7in Conveyor Belt】This machine is matched with 56.7in high-quality conveyor belts, making it more durable.Can be used with conveyor,capping machine， labeling machine, automatic bottle sorting machine, etc. to improve production efficiency.
- 【Adjustable Filling Nozzle Height】The height of the filling nozzle can be adjusted by the support lever knob according to the height of the bottle.Suitable for bottles between 0.78-7.87in(2-20cm) height and 0.78-4.72in(2-12cm) diameter.
- 【High Precision Filling】The components of each adjustment position are precisely matched, and the height and width of the components can be easily adjusted without the use of professional tools. Equipped with intelligent touch control screen,more convenient to set data parameters.
Product parameter:
Voltage: 110V/60Hz
Material: The surface is stainless steel
Conveyor width: 4.72in(12cm)
Conveyor belt length: 56.7IN(144CM)
Bottle height： 0.78-7.87in(2-20cm)
Filling volume: 4*（10-1000ml)
Output speed: 3L/min single head(Depends on the filling volume)
Suitable bottle diameter: 0.78-4.72in(2-12cm)
Precision: ±1%
Notice:
You need to prepare the air compressors.And the barometer and the air inlet, the air inlet is connected with the air compressor.
To ensure safe production, please read the following precautions carefully:
1. Use the power supply that meets the requirements of the machine.
2. After turning off the power switch, there is still voltage in some circuits in the electrical control of the machine. When servicing the control circuit, be sure to unplug the power cord.
3. When the machine has problems, press the emergency stop button directly to suspend all work.
